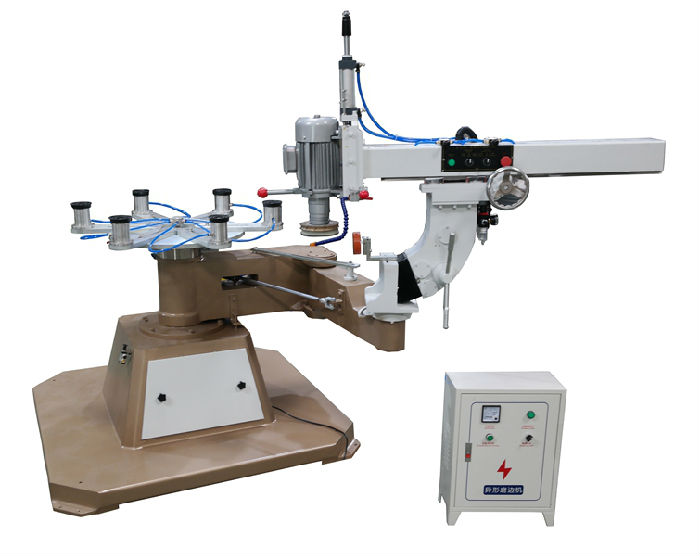

YHN-1320B Rock Plate Internal (External) Edge Grinding Machine
Product introduction:
1. The internal and external special-shaped edge grinding machine is suitable for processing all kinds of round edge pressure mouth and straight edge of flat glass.

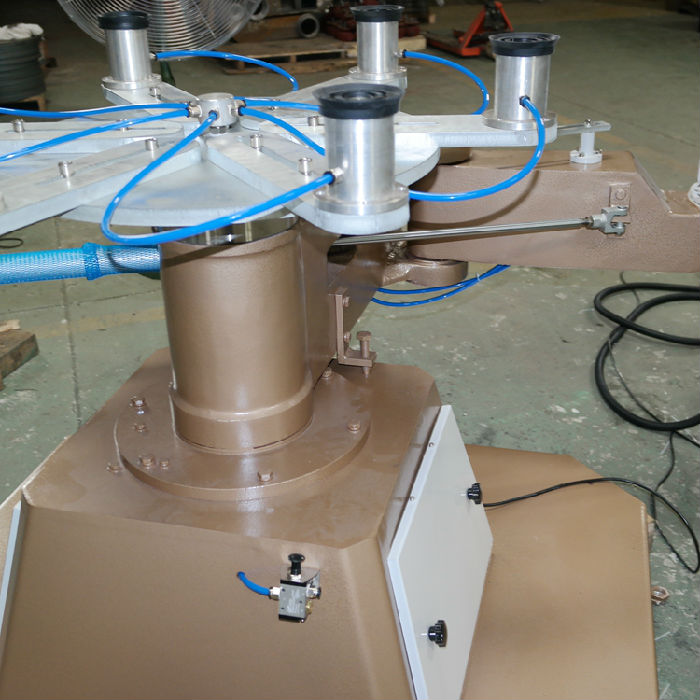

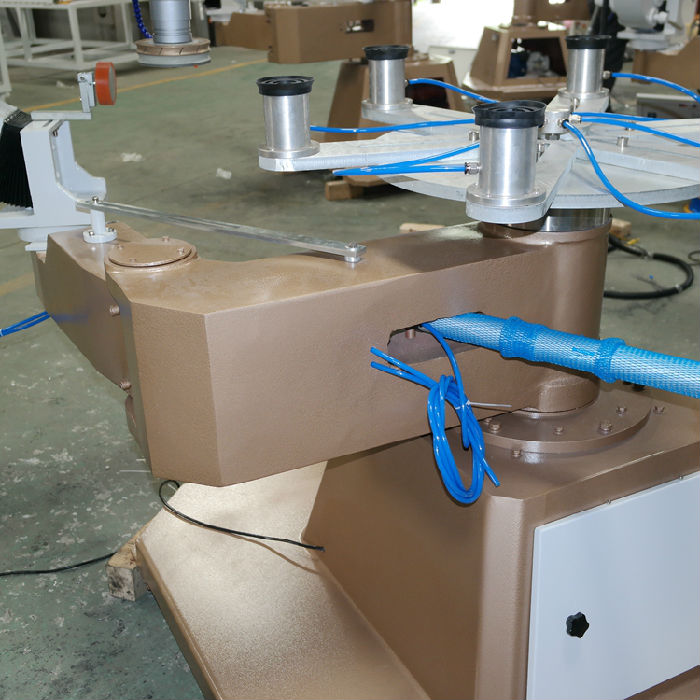

2, with a motor drive six-star sucker rotation, so that the machine can process the inner circle diameter 100-700mm and the outer circle diameter 500-2100mm special-shaped plate glass.
3. The rotating speed of the turntable can be adjusted at any speed when working.

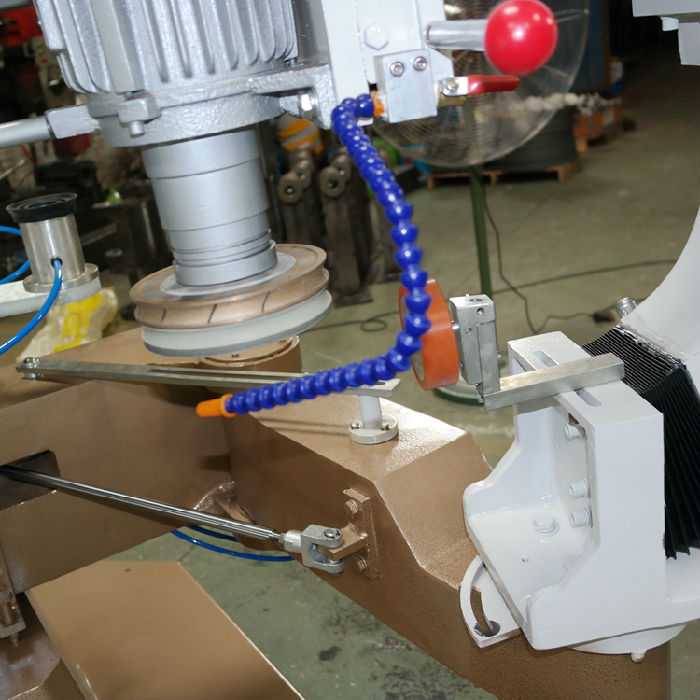

4, The machine can use the cylinder to simple shape of irregular rock plate, glass can also be semi-automatic grinding.When grinding the periphery, the bowl grinding wheel is installed, the grinding head is raised and tilted back, and the Angle of the bevel is adjusted to grind the end face of the bowl grinding wheel.
Main technical specifications:
1, covers an area of the largest turning radius x height: 2500*2500
2, table height :1150mm
3, weight: 800kg+10%
4, voltage: 380V50HZ+1 working power supply voltage can not meet the requirements, please self-equipped voltage regulator.
5. Total power: 2.57KW
6. Processing scope:
Six star sucker rock plate, glass rotary diameter: 500--2100mm
Six star sucker rock plate, glass rotation diameter: 100- 700mm
Speed of six-star sucker: 1-4r /min
Edge grinding wheel: 100mm 150mm (preferred) or other grinding wheel
Edge grinding wheel: users can choose according to their needs
